IP KVM

The next generation of Raspberry Pi based KVM over IP. Manage your servers or PC remotely! PiKVM is a feature-rich, production grade, open-source, Raspberry Pi based KVM over IP device.

PiKVM V4 Plus is the most feature-rich edition! Designed to be the most advanced and versatile PiKVM, it will assist you in the most unique and complex scenarios of tech support or remote system access/management.

FEATURES

• Turnkey solution equipped with all you need out of the box; a power supply, USB & Ethernet cables, and even PCI brackets.

• CE Certification – Industrial-grade level product thanks to the Raspberry Pi CM4.

• 1920×1080@60Hz & 1920×1200@60Hz resolution support for increased UEFI/BIOS compatibility & two extra HDMI output.

• Improved connectivity with three connectivity channels: WiFi (with optional external antenna, Ethernet, and Cellular.

• Extra storage via internal USB 3.0: An internal USB 3 slot for a flash drive.

• Upgraded powering options: Equipped with a classic 5.5×2.1mm DC barrel connector; compatible with a wide range of power supplies (8V to 24V).

• New sleek steel case with a silent customized cooling system.

• More physical security features: MicroSD locker, Kensington security slot, and two locator LEDs.

SPECIFICATIONS

• Raspberry Pi Compute Module 4

  CM4102000 with 2GB of RAM, WiFi, and Bluetooth

• Connection type                                                USB-C

• Power type                                                        DC 12V, 2A

• Power failure option                                          Internal supercapacitor for the real time clock support

• HDMI female                                                     HDMI source input

• USB-C female                                                   For the keyboard, mouse, mass storage, and other external device emulation)

• USB-C female                                                   Serial console management port

• Micro SD card slot                                             For the OS storage

• ATX RJ-45                                                         Special port for power control or AUX

• WiFi                                                                   Optional WiFi b/g/n support with internal/external antenna

• LED indicators                                                   Power, activity, console power, search led, HDMI source engaged

• OLED display                                                    OLED 128×32 0.91” white

• Supported resolutions                                       Up to 1920×1200@60Hz

• Video compression methods                             MJPEG, H.264

• Audio capture mode                                          HDMI audio capture support

• Peak power consumption                                  Up to 24W (2A/12V)

• Operating temperature                                      0°C to 50°C

• Storage temperature                                         -20°C to 60°CSize120 x 68 x 44mm

• Weight                                                               0.35 kg

CONTENTS

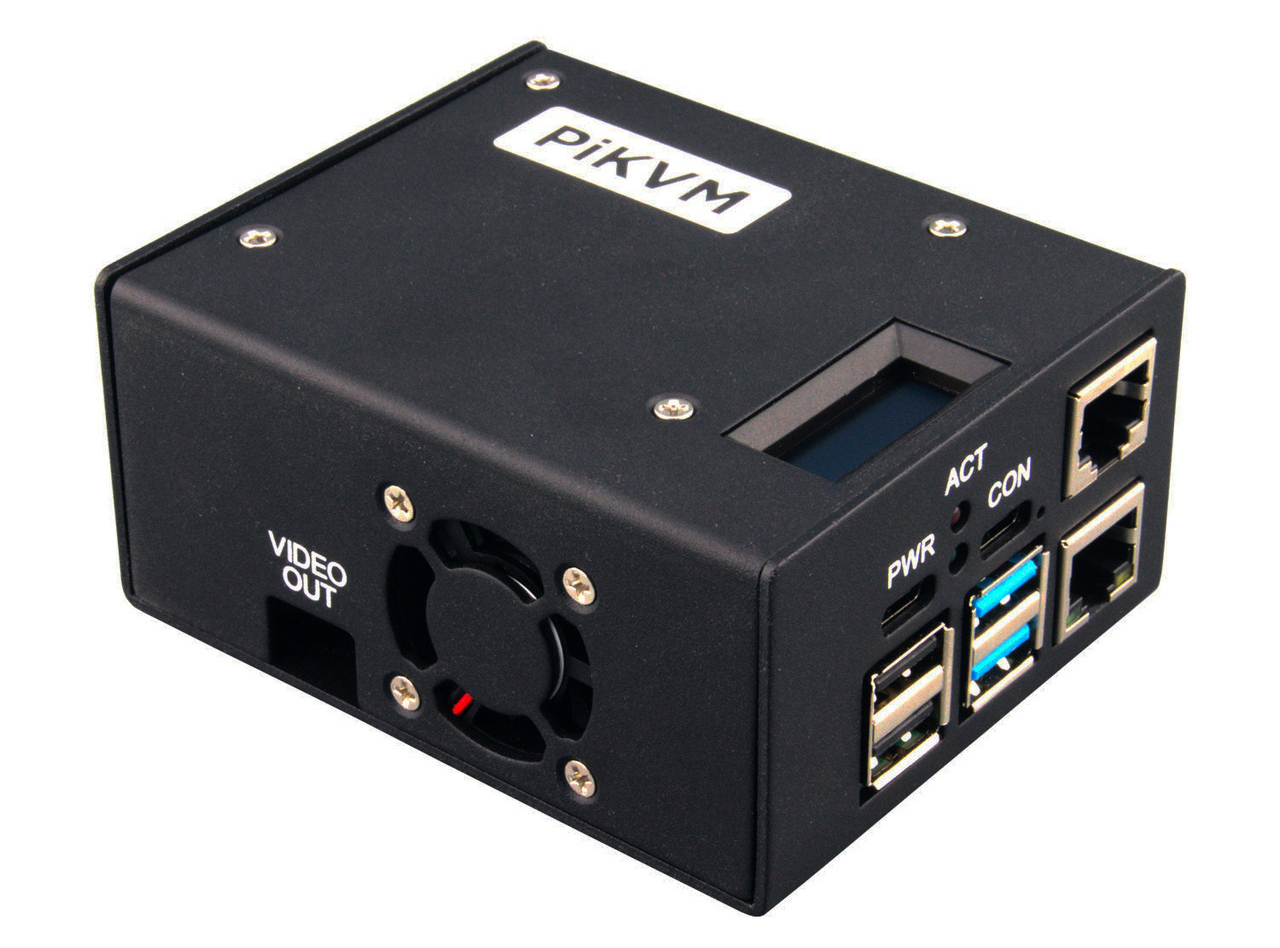

1. PiKVM V4 Plus device

2. Micro SD card with pre-imaged PiKVM software

3. ATX control board

4. ATX connection cables

5. ATX installation brackets

6. 1 x Ethernet cable

7. 1 x ATX cable

8. 1 x USB C to USB A cable

9. 12V 2A Power Supply (international adapters)
